Takeoff connector drip fitting

KSh20

  • Easy to connect and disconnect to both drip line.
  • Highly resistant to UV rays.
  • Commonly used with Low Density Polyethylene Pipes (LDPE) and High Density Polyethylene Pipe (HDPE).
  • Internal diameters of 12 millimeters to 0.75 inch.
  • Made of polyethylene material.
Clear
SKU: N/A Categories: , ,

Description

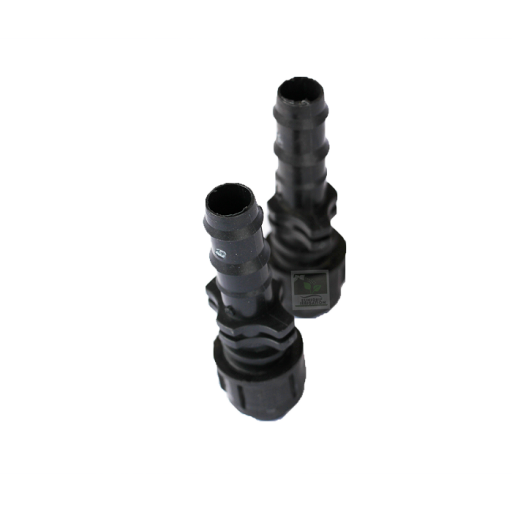

Takeoff connectors drip fitting

take off drip fitting Eunidrip

These drip fittings that are use to connect two different sections of drip and the water supply lines. They come in different designs and colors. Most of these takeoff connectors are complete with black or may have a blue lock or yellow color. Standard drip takeoff connector can sustain a working pressure of up to 16 bars but most of the systems of irrigation work best at a pressure of three bars and below.

The working pressure of the takeoff connectors is very critical since it determines the type of drip line to be used. The high working pressure of the takeoff connector requires a pressure compensated drip line rather than an uncompensated pressured drip line.

Drip takeoff connectors come in various sizes depending on the types of drip lines or drip tapes available in the market. But the known available drip tape sizes are the 12mm and 16mm nominal diameters

Takeoff connectors are commonly used with competent irrigation equipment like drip start connectors grommet rubbers and the pipe punches. Pipe punch is used to make holes on sub-main lines. For the takeoffs to be correctly installed with little or no leakages, the grommet rubbers of different diameters are installed before takeoffs to seal the drilled holes in the sub mainline.

The connectors can be used together with riser. Riser is the pipe that connects underground water supply (main line) to drip tape. Furthermore, when installing the takeoff, first take into consideration of the supply pipe diameter. In smaller pipe diameters, takeoff tends to block the water from reaching the other end of the pipe. Therefore, it is advisable to use the larger pipe diameters to prevent these challenges.

Uses of drip takeoff connector as irrigation equipment

  • It is used to connect or match the drip line/drip tape to the water supply pipe.
  • Used to connect polyethylene of 16 mm together with drip start connector to the mainline.

Properties of Hdpe drip takeoff connectors.

  • Easy to connect and disconnect to both drip line.
  • Highly resistant to UV rays.
  • Commonly used with Low Density Polyethylene Pipes (LDPE) and High Density Polyethylene Pipe (HDPE).
  • Internal diameters of 16 millimeters to 0.75 inch.
  • Made of polyethylene material.









Additional information

take off

16mm
