Description

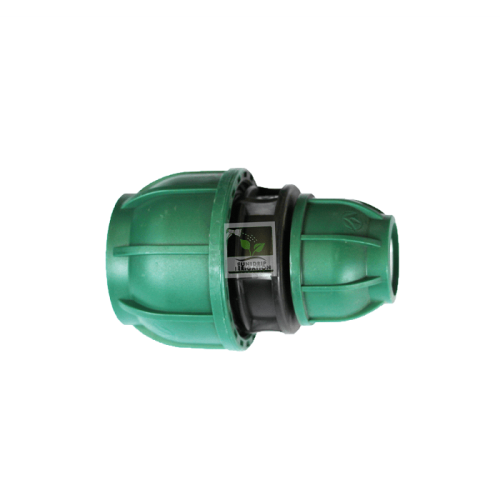

Reducer Coupling: HDPE Compression, 20mm to 110mm
A reducer coupling joins two pipes of different diameters in one watertight fitting. In practice, it is the part that steps a main line down to a sub-main, or a sub-main down to a lateral. Eunidrip Irrigation Systems stocks reducer couplings from 25×20 mm up to 110×90 mm for farmers and contractors across Kenya. Whether you are building a new drip network, upgrading a pipeline, or carrying out a repair, the right reducer gives you a joint that holds pressure and does not leak.
Typically, water in a drip or sprinkler system flows from a high-capacity main into smaller lines. Without a proper reducer, that transition leaks, loses pressure, and delivers water unevenly. A good one keeps the pressure steady and the flow where you want it.
What Is a Reducer Coupling?
A coupling joins two pipe ends in a straight line. A reducer does the same job, but its two ends are different sizes. One end takes the larger pipe, and the other takes the smaller one. Inside, the bore tapers smoothly between the two, so water does not hit a sharp step that would cause turbulence.
In practice, most of the reducers on this shop are compression fittings for HDPE pipe. Each end carries a nut, a split grip ring, and a rubber O-ring. Tighten the nut, and the ring bites the pipe while the O-ring seals it. Therefore you need no glue, no heat welding, and no special tool beyond your hands.
For a joint where both pipes are the same size, use a plain HDPE compression coupling instead. Where you need a branch as well as a size change, a reducer tee does both jobs in one fitting.
High-Quality Construction for Kenyan Conditions
Eunidrip reducer couplings are moulded from UV-stabilised polypropylene. That compound is built for Kenyan sun. However, the real test is time. Whether you farm in the hot, arid north, the humid coast, or the cooler central highlands, the fitting performs the same year after year.
The material resists cracking, corrosion, and the slow damage caused by long exposure to sunlight, high water pressure, and farm chemicals. As a result, a buried or exposed reducer gives long service without the rust you get from a galvanised joint.
Types of Reducer Coupling Available at Eunidrip
Different pipes need different connection styles. The four patterns below cover nearly every irrigation layout in Kenya.
| Type | How it connects | Best used for |
| Compression reducer | Nut, grip ring and O-ring on each end | HDPE mains and sub-mains, quick field joints |
| Threaded reducer | Internal or external thread | Joints you will undo later for maintenance |
| Barbed reducer | Ridged ends pushed inside soft pipe | Drip laterals and layflat hose, tool-free |
| PVC and HDPE reducer | Socket on one side, compression on the other | Stepping from a PVC main into HDPE |
Also, a reducer coupling is not a reducer socket. A plastic reducer socket fits inside another fitting to shrink its bore. A reducer coupling joins two pipes end to end. Pick the socket when you are adapting a fitting, and the coupling when you are joining pipe.
Reducer Coupling Sizes and Prices in Kenya
First, sizes are written larger x smaller, in millimetres of outside diameter. So a 50×32 mm reducer takes 50 mm pipe on one end and 32 mm pipe on the other. Prices below are in Kenya shillings per piece.
| Size (large x small) | Price (KES) | Size (large x small) | Price (KES) |
| 25 x 20 mm | 120 | 63 x 32 mm | 650 |
| 32 x 20 mm | 280 | 63 x 40 mm | 680 |
| 32 x 25 mm | 300 | 63 x 50 mm | 750 |
| 40 x 25 mm | 380 | 75 x 50 mm | 950 |
| 40 x 32 mm | 400 | 75 x 63 mm | 1,000 |
| 50 x 25 mm | 500 | 90 x 63 mm | 1,200 |
| 50 x 32 mm | 550 | 90 x 75 mm | 1,500 |
| 50 x 40 mm | 580 | 110 x 63 mm | 1,850 |
| 110 x 75 mm | 1,950 | ||
| 110 x 90 mm | 2,200 |
Next, measure the outside diameter of both pipes before you order. HDPE is sized by outside diameter, so a pipe marked 32 mm measures 32 mm across the outside. The irrigation pipes we stock follow that standard, and every reducer on this page is cut to match it.
Key Benefits of a Eunidrip Reducer Coupling
- Leak-free joints. The O-ring seals on the pipe wall, so water stays in the line instead of soaking the field.
- Smooth pressure transition. The tapered bore steps the flow down without turbulence, which keeps pressure even to the far end of the lateral.
- Durability. UV-stabilised compound resists cracking and chemical damage for years of service.
- Easy installation. Most reducers go on by hand, which saves time and labour on a long layout.
- Versatility. One fitting pattern suits drip, sprinkler, greenhouse, and domestic supply lines.
Applications of Reducer Couplings in Kenya
Drip irrigation
Typically, the most common job is stepping a mainline down to the lateral that carries drip tape or drip line. Tomato, onion, capsicum, and leafy-green blocks all run this way.
Sprinkler networks
Sprinklers need steady pressure for even spread. Therefore, reducing the pipe size as the line gets further from the pump keeps that pressure up across a large field.
Greenhouse irrigation
Inside a structure, a reducer makes the precise step from the supply pipe to the thin lines that feed each bench. Nothing is glued. As a result, the layout can change with the crop.
Domestic and commercial supply
Also, the same fitting joins pipes of different diameter in plumbing and water distribution. Meanwhile, the HDPE adapters on this shop bridge from that compression joint into a threaded tap or valve.
Landscaping and gardens
Finally, lawn and ornamental watering uses small-bore lines fed from a larger supply. A reducer coupling is the fitting at that step.
How to Install a Compression Reducer Coupling
- Cut square. Trim both pipe ends flat and remove any burr, so the O-ring is not nicked on the way in.
- Loosen the nuts. Back each nut off two turns, but do not remove it.
- Mark the depth. Measure the socket depth and mark it on the pipe, so you know when the pipe is fully home.
- Then push each pipe in. Drive it past the O-ring until it reaches your mark. A twist helps the ring slide over.
- Finally, tighten by hand. Turn each nut until firm. Then test the joint under pressure before you backfill.
Next, keep a spare of every size you use on the farm. A split reducer in the middle of a watering round stops every lateral downstream of it.
Why Buy Your Reducer Coupling from Eunidrip
Eunidrip Irrigation Systems is a trusted supplier in Kenya’s irrigation industry. When you buy from us, you get the fitting and the advice that goes with it. For example, our team helps you choose the right reducer size and type for your system before you order.
We supply farmers and contractors across Kenya, including Nairobi, Nakuru, Eldoret, Kisumu, and Mombasa. Meanwhile, prices stay competitive without a drop in quality, and every product is field-tested on Kenyan farms. For the engineering behind pipe sizing, the FAO irrigation water management guide explains how to match pipe diameter to flow before you buy a single fitting.
Reducer Coupling — Frequently Asked Questions
How do I read a reducer coupling size?
First the larger pipe, then the smaller pipe, both in millimetres of outside diameter. A 63×40 mm reducer joins 63 mm pipe to 40 mm pipe.
Can I use a reducer coupling on PVC pipe?
Yes, with the PVC-to-HDPE pattern. In practice, one end sockets onto the PVC, and the other compresses onto the HDPE.
Do I need glue or tape?
Not on a compression reducer, because the O-ring and grip ring do the work. Thread tape only applies to the threaded type.
Why is my reducer leaking at the nut?
Typically the pipe was not pushed fully past the O-ring, or the end was cut at an angle. Undo it, cut the pipe square, and refit to the depth mark.
Can I step down more than one size at once?
Yes. A 110×63 mm reducer skips two sizes in one fitting. However, for very large steps, two reducers in series give a smoother flow.
Is a reducer coupling the same as a reducer bush?
No. A bush or socket sits inside another fitting. A reducer coupling joins two pipes directly. See the types table above.
Order Your Reducer Coupling Today
Eunidrip is your one-stop shop for reducer couplings in Kenya. In addition, we stock the pipes, tees, adapters, and valves that go with them. We deliver countrywide, and our team can size a whole layout from your plot plan before you order.
Call or WhatsApp 0724 775 516 with the two pipe sizes you need to join. Alternatively, use our contact page to send a layout. We will quote the reducers and every other fitting your system needs.
