Description

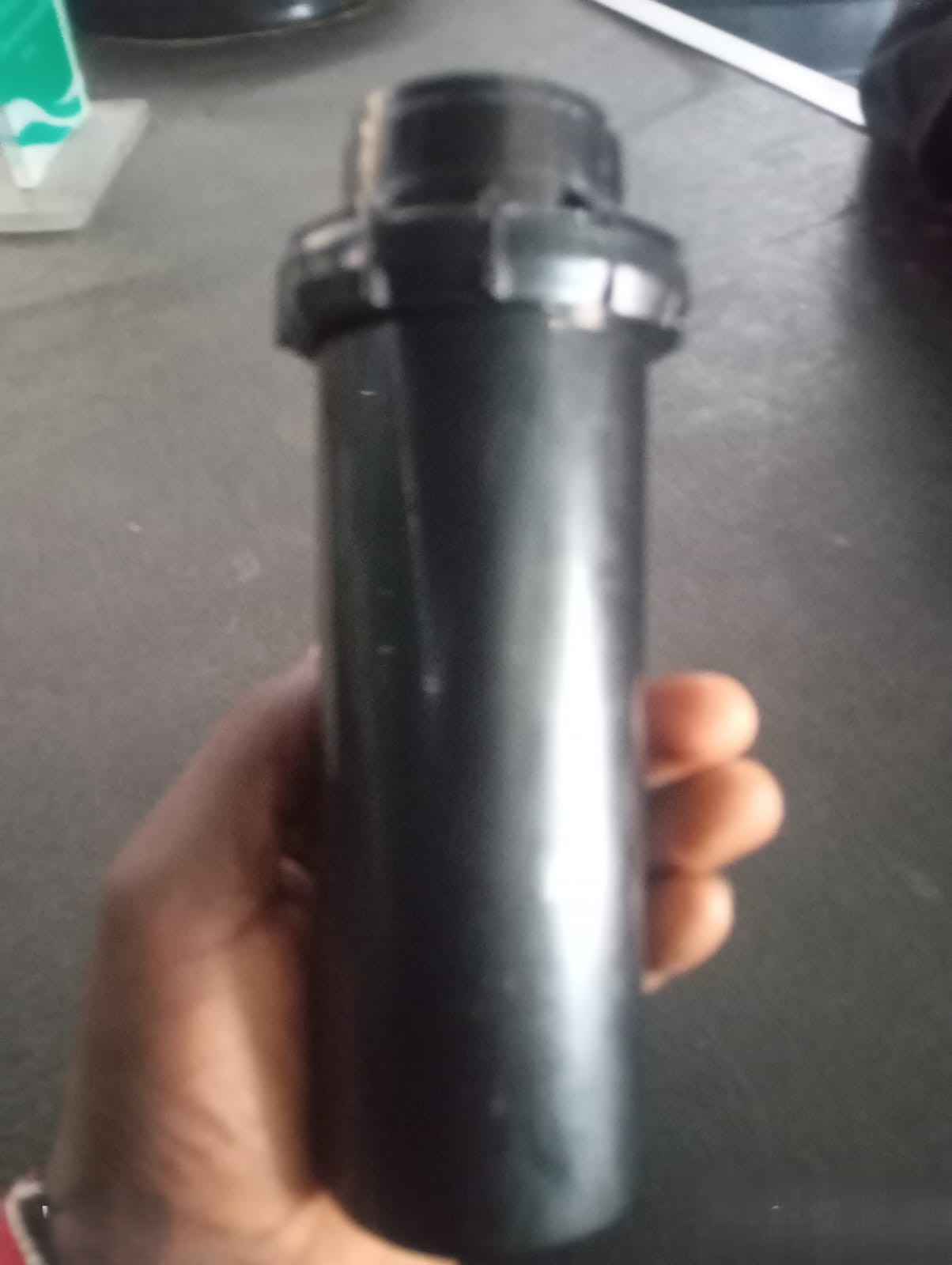

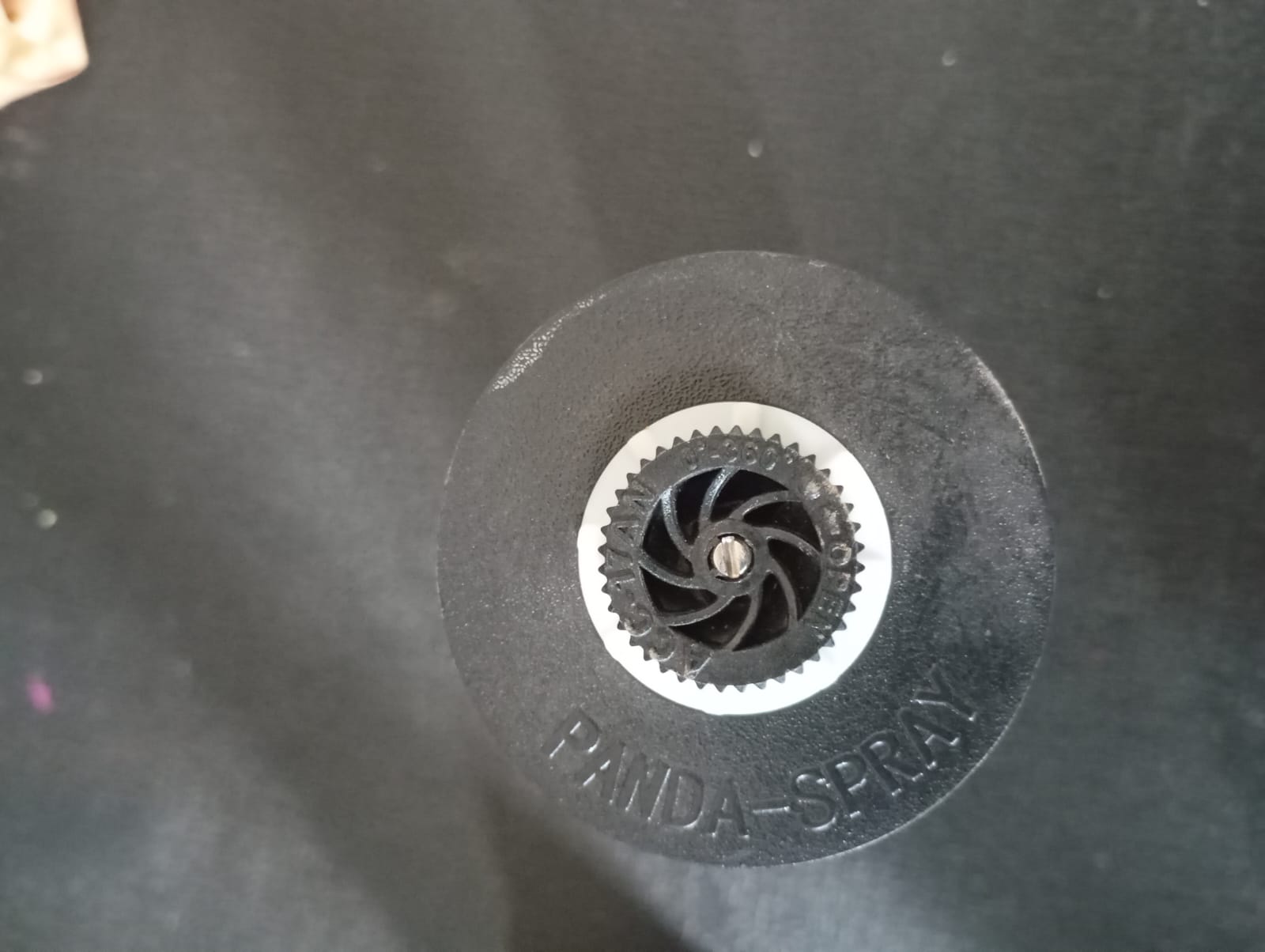

Pop-Up Sprinklers in Kenya
Pop-up sprinklers are irrigation devices installed below ground level to water lawns, gardens, sports fields, parks, and landscaped areas. They rise above the ground when water pressure enters the irrigation system and retract when watering stops.
Unlike ordinary sprinklers that remain visible on the lawn, pop-up sprinklers stay hidden when not in use. This gives the lawn a neat appearance and makes it easier to mow, walk, and carry out other outdoor activities.
In Kenya, pop-up sprinklers are useful for homeowners, hotels, schools, offices, estates, sports facilities, and commercial landscapers who want to maintain green lawns and attractive outdoor spaces.
How Do Pop-Up Lawn Sprinklers Work?
A pop-up lawn sprinkler is connected to an underground irrigation pipe. When the irrigation system opens, water flows through the pipe and creates pressure that raises the sprinkler head above the ground.
The sprinkler then sprays water over a selected area. Depending on the model, it may spray in a fixed pattern or rotate to cover a wider area.
When the water supply stops, a spring mechanism retracts the sprinkler head into its underground housing.
A complete system normally includes:
- Pop-up sprinkler heads: Distribute water over the lawn.
- Underground pipes: Carry water from the supply to the sprinkler heads.
- Valves: Control water flow to different irrigation zones.
- Filters: Help remove dirt and particles where required by the system.
- Controller or timer: Automates watering when included.
- Fittings and connectors: Join pipes, valves, and sprinkler heads.
- Pump or pressure supply: Provides sufficient flow and operating pressure.
Each component plays a role in ensuring that the lawn receives adequate water.
Types of Pop-Up Sprinklers
There are different types of pop-up lawn sprinklers depending on the size of the area, water pressure, spray pattern, and distance the water needs to cover.
- In-Ground Pop-Up Sprinklers
These sprinklers are installed underground, with only the top visible when watering is not taking place. They rise when water flows through the system and retract after watering. They are suitable for home lawns, hotels, schools, office compounds, and landscaped gardens.
- ½-Inch Pop-Up Sprinklers
These have a nominal ½-inch threaded inlet, commonly used with smaller spray heads and some compact rotary sprinklers. They are suitable for small to medium lawns, flower gardens, and narrow landscaped areas, depending on the nozzle and water pressure.
- ¾-Inch Pop-Up Sprinklers
These have a nominal ¾-inch inlet and are commonly used with gear-driven rotor sprinklers for medium to large lawns. They can cover greater distances than many small spray heads, depending on the model, nozzle, flow rate, and operating pressure.
- Adjustable and Fixed-Pattern Lawn Sprinklers
These sprinklers distribute water in different directions. Fixed-pattern nozzles may spray a quarter, half, or full circle, while adjustable models allow the spray angle to be changed to suit the shape of the lawn.
Understanding Sprinkler Sizes and Spray Patterns
When buying pop-up sprinklers, it is important to distinguish between the inlet size, pop-up height, and spray angle. These are three different specifications.
| Specification | Common options | What it means |
| Inlet size | ½ inch and ¾ inch | The nominal thread size used to connect the sprinkler to the irrigation fitting |
| Pop-up height | 2, 4, 6 inches and other model-dependent sizes | How far the sprinkler head rises above the ground |
| Spray pattern | ¼, ½, ¾ or full circle | The direction and angle over which water is distributed |
| Spray radius | Depends on model and nozzle | How far water reaches from the sprinkler |
| Operating pressure | Manufacturer-specific | The water pressure needed for the intended performance |
For example, a ½-inch sprinkler can have a quarter-circle nozzle, while a ¾-inch sprinkler can also be configured to water a partial circle. The inlet size does not automatically determine the spray angle or coverage distance.
How to Install In-Ground Pop-Up Sprinklers
Proper installation is important for even watering, reduced leakage, and easy maintenance. The following steps can guide homeowners, landscapers, and irrigation contractors in Kenya.
Step 1: Measure the Lawn
Measure the length and width of the lawn. Mark the corners, boundaries, flower beds, pathways, and other areas that should not receive water. Use these measurements to plan the sprinkler positions and estimate the materials required.
Step 2: Plan Sprinkler Positions
Position sprinkler heads so that the spray from one head reaches the neighbouring head. This is called head-to-head coverage. It helps reduce dry patches, especially during hot and dry weather. The spacing depends on the manufacturer’s recommended spray radius and available water pressure.
Step 3: Dig Trenches
Dig trenches along the planned pipe routes. The depth should allow the pipes to be protected from normal lawn maintenance and surface damage while following local site requirements. Keep sprinkler locations accessible for installation and servicing.
Step 4: Lay the Pipes and Install Fittings
Lay the main supply pipe and branch lines in the trenches. Use compatible HDPE pipes, tees, elbows, reducers, and other fittings to distribute water to the sprinkler heads. Install control valves where needed to divide the lawn into manageable watering zones.
Step 5: Connect the Pop-Up Sprinklers
Connect each sprinkler to the appropriate underground fitting or flexible swing joint. The connection must match the sprinkler’s inlet thread, commonly ½ inch or ¾ inch. Flexible connections can help protect the sprinkler from stress caused by movement or minor ground settling.
Step 6: Test the System
Turn on the water and inspect each sprinkler. Check for leaks, blocked nozzles, uneven spray, and insufficient pressure. Adjust the spray direction and angle to suit the lawn. Correct any problems before covering the trenches.
Step 7: Backfill and Finish the Lawn
Once the system works correctly, carefully cover the trenches and restore the grass. Set the sprinkler tops at the appropriate finished ground level so they retract properly and do not obstruct mowing.
Components Required for a Pop-Up Lawn Sprinkler System
A complete installation requires more than the sprinkler heads alone.
| Component | Function |
| Pop-up sprinkler heads | Spray water across the lawn |
| HDPE pipes | Carry water underground |
| HDPE tees and elbows | Connect pipes and change direction |
| Male and female adapters | Connect pipes to threaded components |
| Valves | Control water supply to different sections |
| Water pump, if required | Provides the necessary flow and pressure |
| Filter, where required | Removes particles that could block nozzles |
| Controller or timer | Automates watering when fitted |
| Swing joints or flexible connectors | Connect sprinkler heads and help accommodate movement |
The quantities and sizes depend on the lawn dimensions, sprinkler model, water supply, and irrigation design.
How to Choose the Right Lawn Sprinkler
Before purchasing pop-up sprinklers in Kenya, consider the following factors.
- Size of the lawn: Small lawns may work well with spray heads, while larger lawns may benefit from rotor sprinklers.
- Inlet size: Choose a ½-inch or ¾-inch inlet that matches the connection and flow requirements.
- Water pressure and flow: Confirm that your pump or water supply can run the selected sprinklers effectively.
- Grass height: A suitable pop-up height allows the spray to clear the grass.
- Lawn shape: Use suitable spray patterns for corners, edges, and open areas.
- Water source: Water containing sand or other particles may require appropriate filtration.
- Maintenance: Select a model with accessible nozzles and replacement parts.
Do not choose a sprinkler based on inlet size alone. A well-designed system must balance the water demand of the sprinkler heads with the available pressure and flow.
Maintenance Tips for Pop-Up Sprinklers
Regular maintenance keeps a lawn irrigation system working efficiently.
- Clean blocked nozzles according to the manufacturer’s instructions.
- Check for damaged sprinkler heads after mowing.
- Inspect underground connections for leaks or pressure loss.
- Ensure the sprinkler heads rise and retract freely.
- Adjust spray patterns when water starts falling on paths or buildings.
- Inspect filters and valves regularly.
- Review the watering schedule during rainy and dry seasons.
Watering early in the morning can reduce evaporation and wind-related losses. Avoid watering for longer than the lawn needs, as excessive watering can cause runoff, waterlogging, and unnecessary water costs.
Why Use Pop-Up Lawn Sprinklers in Kenya?
Pop-up sprinklers offer a convenient way to maintain green lawns and attractive landscapes without manually moving hoses or portable sprinklers around the compound.
They are suitable for residential gardens, hotels, schools, office compounds, apartment buildings, recreational facilities, and commercial landscaping projects.
When correctly installed, the system stays hidden underground when not in use, distributes water according to the selected spray pattern, and can be automated with a controller. This makes lawn maintenance easier for property owners and groundskeeping teams.
